1600x3000MM Chain Feeder Printer Slotter Die Cutter Machine Carton Box Making From YIKE GROUP

YKC-1426 Chain Feeder Printer Slotter Die Cutter Machine Carton Box Making From YIKE GROUP

Detailed Product Description

※ Main features

1. printer slotter phase :electric number digital adjust

2. auto ink circulation system

3. combined slotting creasing slitting knives which is easy to change order.

4. The gear of the machine: Auto lubrication with oil

5. Machine body thickness:50mm 6.automatic seperated, pneumatic lock up.

※ Printer Unit

1. Gear enclosed spray lubrication system, keyless drive design, so that accurate long-term chromatic unchanged. High-speed Ink Printing Slotting Machine Manufacture

2. Frequency control system to control becomes easy and flexible. Each group of printing unit is equipped with jogging button for easy control and loaded rubber plate.

3. Each printing unit can be electrical separation. Printing Slotting Machine

4. High-precision anilox roller, diameter 195mm. The textured density of anilox roller is 180-300 lines / inch, to ensure the printing effect is clear and beautiful.

5. Ink supply system is pneumatic diaphragm pumps, high efficiency, Flexo Printing Slotting Machine saving ink. Automatic cycle supply. Cleaning with clean water can be.

6. Automatic uniform system to keep the anilox roller quit. When the machine stop,the anilox roller and rubber roller could running independently for transmission ink and prevent the ink dry out.

7. The rubber roller is use high quality hard wearing rubber,and with the middle of a relatively high high-precision grinding. Semi Automatic Carton Flexo Printing Slotting Machine

8. Phase institutions is 360-degree Electric adjustment, ergonomic design.

※ Slotting Unit

1. Gear enclosed spray lubrication system, keyless drive design, so that accurate long-term chromatic unchanged. High Speed Flexo Printing Slotting(stacking Unit)

2. Phase institutions is 360-degree Electric adjustment, ergonomic design.

3. Four-blade sync adjustment for carton height.

4. Serrated slotted cutter. Thickness: 7mm.

5. Slotter and creaser combined movement

※ Die-cutting Unit

1. Rubber roller mechanical spiral commutation 40mm move about horizontal structure

2. Die-cutter phase, computer and electric digital control

3. Horizontal phase, computer and electric digital control, range ±5mm

4. Rubber roller and die roller gap use computer and electric digital control,

5. Adjust the transfer roller use computer and electric digital control,

6. The rubber roller compensated by motor-driven,control the speed of thr rubber roller, range ±3mm

Other type flexo printer slotter die cutter machine from YIKE GROUP

printing slotting die cutting machine

flexo printing and die cutting machine

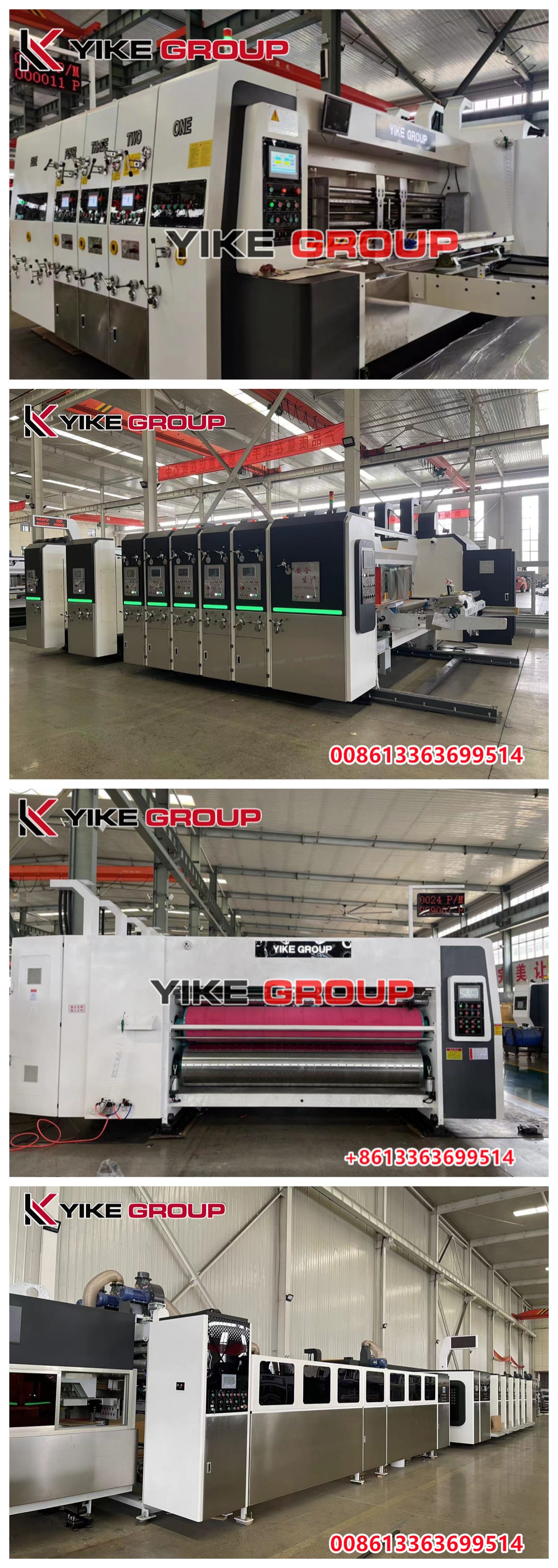

1600x3000MM Chain Feeder Printer Slotter Die Cutter Machine Carton Box Making From YIKE GROUP Images
